Electrically controlled permanent magnet chuck

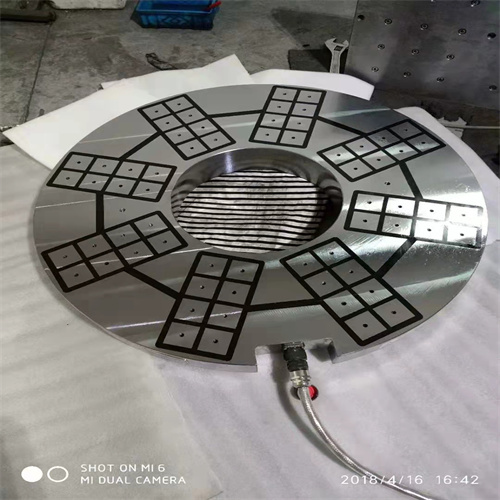

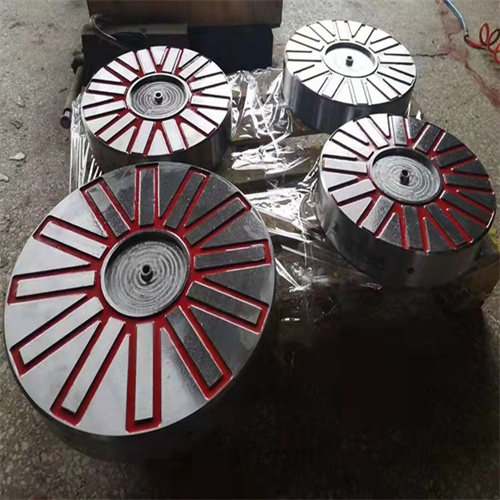

Circular electronically controlled permanent magnet chuck

Item No.: 00106
Metal cutting processing includes turning, milling, grinding, planing, drilling, etc. It is suitable for ordinary machine tool applications without changing the original structure of the machine tool.
Description
Description
Product name: round electric permanent magnetic chuck
Product introduction: The circular electric permanent magnet chuck adopts a multi-magnetic circuit electric control design, the magnetic force is adjustable, and there is no need to continue power supply after magnetization, and it can be powered by a quick connector or a conductive slip ring. In the processing process, the workpiece is clamped without obstacles, and the workpiece can be processed freely, and the function of completing three-sided processing in one clamping is truly exerted; making the processing process safer, more convenient and efficient.
Safety guarantee, short-term power-on charging and demagnetization, so the workpiece will not fly out due to sudden power failure or power failure during processing;
Accuracy guarantee, the coil does not generate heat, and the disk has no thermal deformation, ensuring the processing accuracy;
Fast positioning, can process "T"-shaped grooves and drill holes on the magnetic permeable block on the magnetic pole, which can realize the rapid positioning of the workpiece.
Low-vibration clamping, the clamping deformation and vibration of the workpiece are extremely low, the surface finish is improved, and the accuracy is significantly improved;
Deformation-free clamping, no deformation and stress will be generated in the workpiece due to the clamping force;
Applicable parts, suitable for workpieces that are not easy to clamp (such as thin-walled parts, flange parts, special-shaped parts, etc.);
Strong holding power, suction ≥180-250N/cm2, high rigidity, high precision, no thermal deformation;

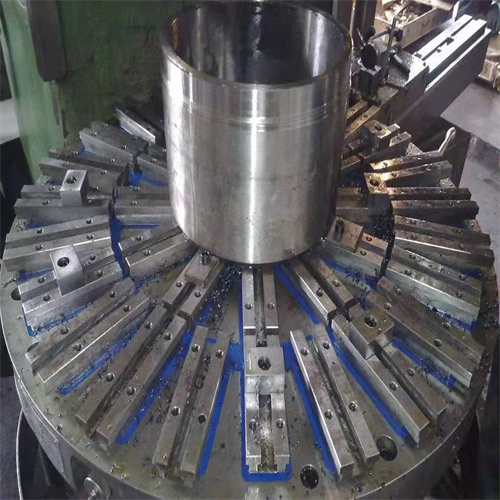

Application fields, mainly supporting horizontal lathes, vertical lathes, vertical grinders, turning-milling composites, 5-axis machining centers, etc.;
Compatible performance, the control unit is compatible with the machine tool control system, and can also be used in automation applications;
