Description

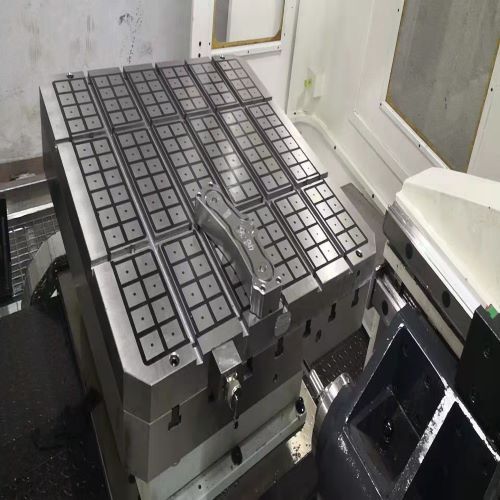

Product introduction: The powerful electric permanent magnetic chuck is a new type of magnetic chuck that uses electric pulses to "turn on and off" the magnetic force. The electric permanent magnet chuck does not need electric energy during work, but only uses electric energy within 1-2 seconds of the magnetization and demagnetization process; because there is no need for power during the processing process,
1. There will be no loss of power and magnetization during work;
2. Since electricity is not used during work, there will be no heat generation, so there will be no thermal deformation;
3. The disk does not use electricity during work, so it saves a lot of electricity. The PLC interface can be remotely controlled by a microcomputer to improve the degree of automation.
The main purpose of the strong electric permanent magnet chuck:

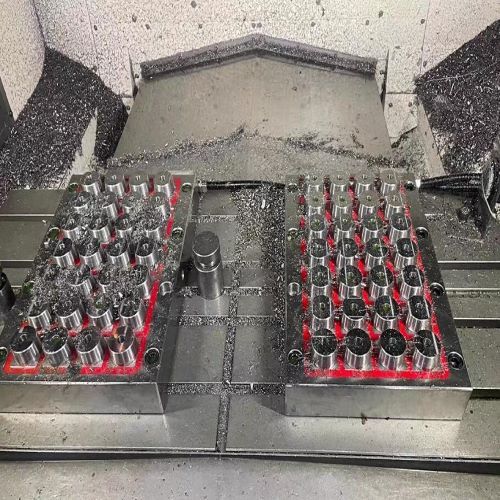

1. Metal cutting processing includes turning, milling, grinding, planing, drilling and CNC machining center applications, without the need to change the original structure of the machine tool.
The main features of the product:
1). Safe, no magnetism will be lost after 30 years of power failure;
2) Energy saving, saving more than 95% of electricity;
3) High efficiency, improve efficiency by more than 60%
4), the clamping force can be as high as 25Kg/cm2 or more
5), the use is very simple, fast, durable and maintenance-free
Requirements:
＞The thickness of the workpiece is required to be more than 10MM;
＞ The most suitable conditions for workpiece clamping, at least 4 magnetic poles are in contact. With the use of magnetically permeable soft claws and sliding elastic blocks, it can be used for more functional workpiece processing, such as: five-sided machining, drilling, tapping, and groove milling Groove...The processing procedure can be completed at one time, and irregular and curved workpieces can also be clamped for processing.
