Electromagnetic chuck

Electromagnetic chuck for milling machine

Item No.: 00114

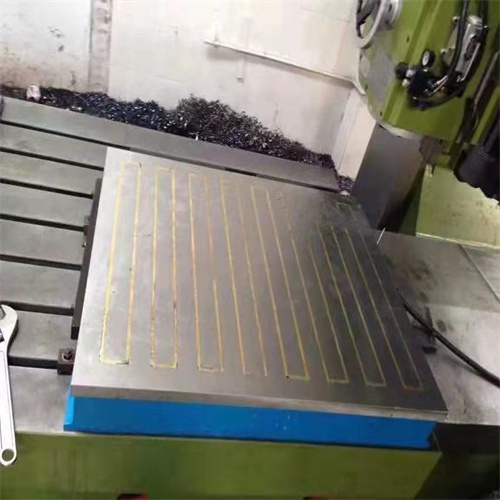

Powerful electromagnetic chuck is used in conjunction with various milling machines and planers (vertical milling machines, planer milling machines, CNC milling machines, planers),
Description Model
Description
ABOUT THE PROJECT

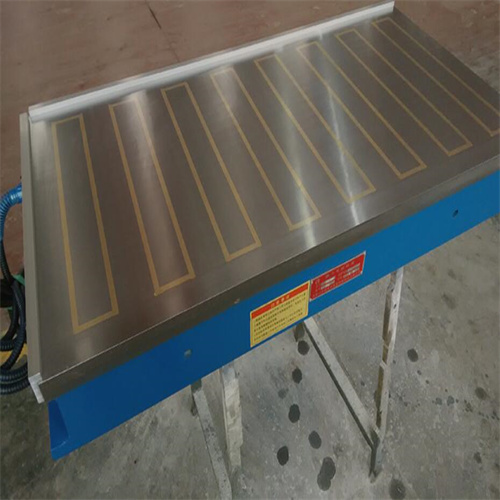

Product name: Powerful electromagnetic chuck for milling and planing is used in conjunction with various milling machines and planers. It has strong suction, safe and reliable use, and is very convenient for positioning magnetically conductive workpieces that are not suitable for mechanical clamping. The product can prevent the milling tool from being magnetized and improve the machining accuracy. Suction ≥180N/cm2. For workpieces that need to be machined with a strong suction grinder, a strong electromagnetic chuck for milling can also be used as a complete set. For vertical milling machines, gantry milling machines, CNC milling machines, forming machines, planers, planing tower milling machines, heavy cutting is very effective. This series of disks is an ideal choice for improving production efficiency and reducing labor intensity of workers.
Remarks: The powerful electromagnetic chuck is used in conjunction with various milling machines and planers (vertical milling machines, planer milling machines, CNC milling machines, planers). The suction force is ≥180N/cm2, which is the most effective for heavy cutting. Effectively prevent tool magnetization, improve machining accuracy, extend tool life, and save clamping time; this series of disks is an ideal choice for improving production efficiency and reducing labor intensity. Make the processing process safer, more convenient and efficient.
Model
型号Model 主要尺寸mm Dimensions  极距P 电压V
Voltage
电流A
Current
功率W
Power
净重KG
Net WT
包装箱外形尺寸CM
Overall size
长L 宽B 高H
X91 200*560 560 200 120 100 110 1.5 165 79 76*30*20
X91 200*600 600 200 120 100 110 1.8 198 82 80*30*20
X91 300*600 600 300 120 110 110 2.2 242 132 80*40*20
X91 300*680 680 300 120 110 110 2.5 275 156 88*40*20
X91 300*800 800 300 125 110 110 3 330 202 100*40*20
X91 300*1000 1000 300 125 110 110 3.3 363 226 120*40*20
X91 400*800 800 400 125 120 110 3.5 385 252 100*50*20
X91 400*1000 1000 400 125 120 110 4.2 462 310 120*50*20
X91 500*1000 1000 500 128 120 110 5.5 605 360 120*60*30
X91 500*1200 1200 500 128 120 110 6.2 682 420 140*60*30
X91 500*1500 1500 500 128 120 110 6.5 748 520 170*60*30
X91 600*1000 1000 600 130 120 110 5.6 616 420 120*70*30
X91 600*1200 1200 600 130 120 110 6 660 520 140*70*30
X91 600*1500 1500 600 130 120 110 6.6 726 650 170*70*30
X91 600*1800 1800 600 130 120 110 7.5 825 720 200*70*30
X91 800*1000 1000 800 135 122 110 6 660 580 120*90*30
X91 800*1500 1500 800 135 122 110 7.2 792 890 170*90*30
X91 800*1800 1800 800 135 122 110 8 880 1050 200*90*30
